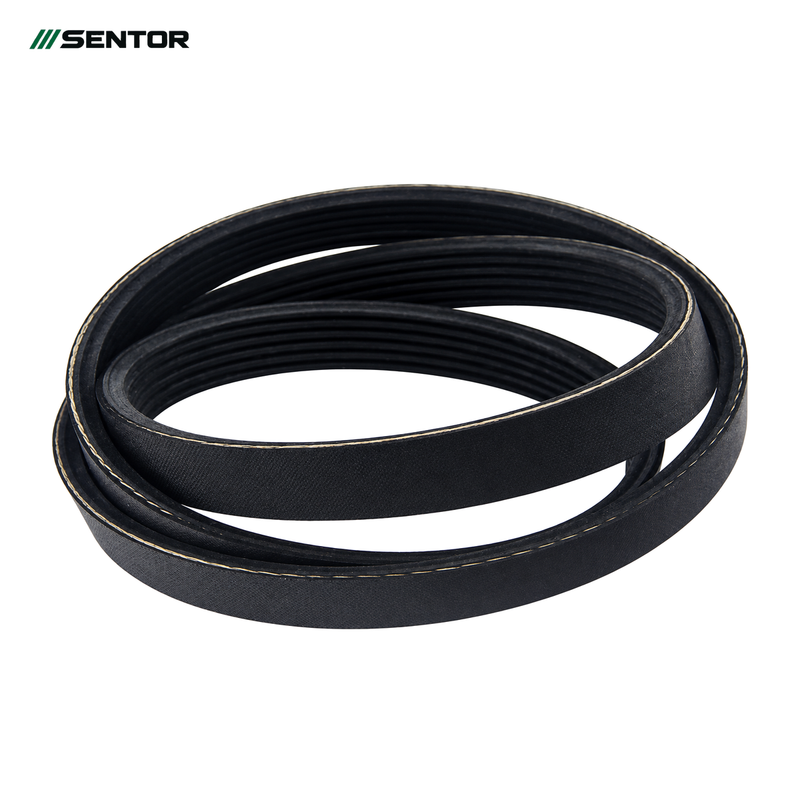

PK Belts
EPDM ribbed belts in the PK profile. Review the catalogue rib pitch, thickness, rib-count range and unmarked length range.
Reference image; confirm the complete product configuration with your enquiry.
PRODUCT SERIES
Poly-V Belts
EPDM ribbed belts in PH, PJ, PK, PL and PM profiles, with catalogue-listed rib pitch and dimensions.
EXPLORE THE RANGE
Find your product type
1 / 2
PJ Belts
EPDM ribbed belts in the PJ profile. Include the required rib count, length and operating application in your enquiry.
Reference image; confirm the complete product configuration with your enquiry.

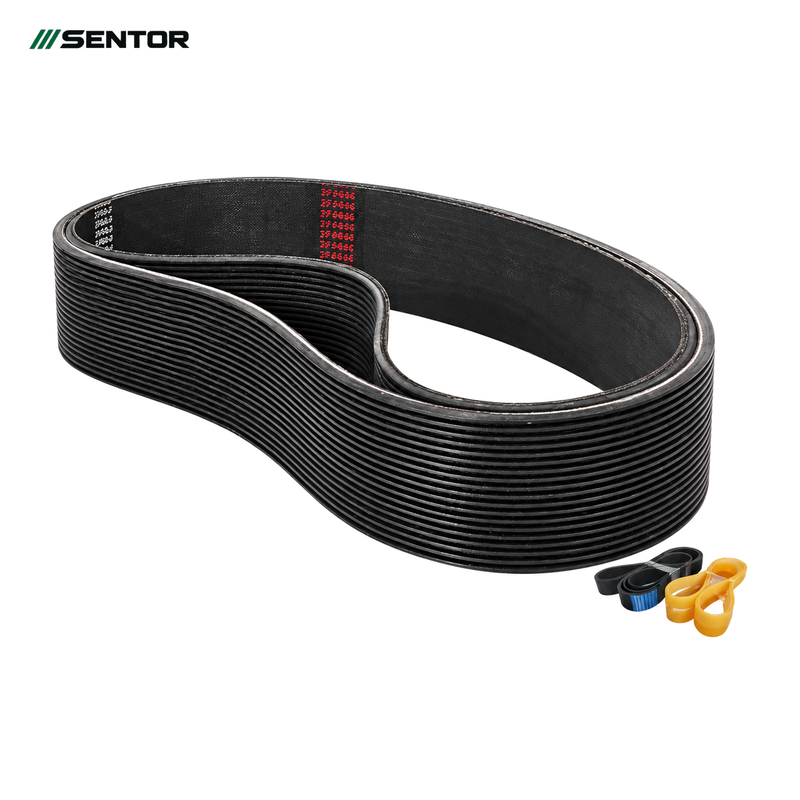

PM Belts
EPDM ribbed belts in the PM profile. Use the catalogue dimensions and confirm the complete rib-count and length combination.
Reference image; confirm the complete product configuration with your enquiry.
CATALOGUE SPECIFICATIONS
Profiles, dimensions & materials
Choose a family to view published profiles, dimensions and materials.
EPDM = ethylene propylene diene rubber.
Ribbed V-Belts5 listed profiles · page 05
Multi-rib drive belts in PH, PJ, PK, PL and PM profiles. Specify the profile, rib count and marked belt length for a quotation.
Materials listed: EPDM
Scroll the table horizontally to view all columns. Values and length symbols follow the cited catalogue.
| Type | Rib pitch Pb (mm) | Thickness (mm) | Angle | Length range (mm) | Rib numbers |
|---|---|---|---|---|---|
| PH | 1.6 | 2.6 | 40° | 160-3000 | 2-310 |
| PJ | 2.34 | 3.5 | 40° | 160-3000 | 2-210 |
| PK | 3.56 | 4.2 | 40° | 160-3000 | 2-140 |
| PL | 4.7 | 8.5 | 40° | 160-3000 | 2-105 |
| PM | 9.4 | 14 | 40° | 160-3000 | 2-52 |
SENTOR Transmission Belt Catalogue · printed page 05. Ranges are reproduced as catalogue envelopes, not a promise that every length and rib-count combination is available. The page does not name the length convention; no Li, Lw, La or Ld marking is assigned.
What to include in your enquiry
- Profile
- Number of ribs
- Length with the original belt marking
- Quantity and equipment
